Fire Suppression System for Electrical Panel

Get a Price/Quote

Product Details:

Fire Class Class A, B, C & Electrical fires
Control Type Fully Automatic
Shape Cylindrical with flexible detection tubing
Fire Extinguisher Type Automatic Modular (Tube Type)
Coverage Area Single Electrical Panel up to 3m3
Energy Efficiency Rating N/A (Does not consume power in idle state)
Operating Pressure 18 bar (nominal)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Fire Suppression System for Electrical Panel Price And Quantity

Minimum Order Quantity 10 Piece

Fire Suppression System for Electrical Panel Product Specifications

Capacity 2 kg, 4 kg (configurable)
Installation Type Direct panel mounting inside electrical enclosure
Coating Type Polymer-coated tube
Technology Clean Agent Gas Based Automatic Detection & Suppression
Connectivity Type Standalone/Non-Addressable
Features Non-Conductive, Zero Residue, Quick Response, Environment Friendly, Uninterrupted Power Supply Compatible
Mounting Type Internal/Panel Surface Mounted
Working Temperature 0C to 55C
Operating Pressure 18 bar (nominal)
Pressure 18 bar
Shape Cylindrical with flexible detection tubing
Control Type Fully Automatic
Fire Extinguisher Type Automatic Modular (Tube Type)
Coverage Area Single Electrical Panel up to 3m3
Energy Efficiency Rating N/A (Does not consume power in idle state)
Fire Class Class A, B, C & Electrical fires
Diameter 12 mm
Application Electrical Panel Fire Protection
Max Flow Rate 4.5 kg/sec

Alarm System Optional audio/visual alarm connectivity
System Weight Approx. 6 kg (for 4 kg system)
Compliance Standard UL Listed, IS:15683, CE certified
Shelf Life 10 years (approx.)
Gas Type HFC-227ea (Clean Agent)
Cylinder Material Seamless Steel
Detection Method Pneumatic Heat Sensing Tube
Suitable Environment Indoor installations, panels with critical electrical equipment
Discharge Time Less than 10 seconds
Refillable Yes
Maintenance Low maintenance, routine visual check
Activation Temperature Pre-engineered at 100C

Fire Suppression System for Electrical Panel Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'Fire Fighting Equipments' category

2280 Lpm Capacity Electrical Driven Main Pump Minimum Order Quantity : 10 Shape : Horizontal Control Type : Electrical Panel Controlled Diameter : 100 mm Application : Fire Fighting systems, Sprinkler Systems, Industrial Water Supply Max Flow Rate : 2280 Lpm Capacity : 2280 Liters per minute Installation Type : Base Mounted Coating Type : Epoxy Coated Features : Heavy Duty, High Reliability, Corrosion Resistance, Continuous Operation Connectivity Type : Three Phase Electrical Connection Technology : Centrifugal Pump Operating Pressure : Up to 10 bar Mounting Type : Floor Mounted Working Temperature : 0C to 65C Pressure : 710 kg/cm2 Fire Extinguisher Type : Main Fire Pump (Not Portable) Coverage Area : Large Industrial and Commercial Sites Fire Class : Class A, B, and C Energy Efficiency Rating : High Efficiency Motor Voltage : 415 V

Send Inquiry

180 Lpm Capacity Electrical Driven Jockey Pump Minimum Order Quantity : 10 Shape : Horizontal Control Type : Automatic & Manual Control Diameter : 50 mm (approx) Application : Fire Fighting Systems, Sprinkler Systems, Booster Pumping Max Flow Rate : 180 Lpm (Litres per minute) Capacity : 180 Lpm Installation Type : Floor Mounted Coating Type : Powder Coated for Enhanced Durability Features : Corrosion Resistant, High Reliability, Continuous Operation, Low Maintenance Connectivity Type : Three Phase Electric Connection Technology : Centrifugal Pump Technology Operating Pressure : Up to 10 Bar Mounting Type : Baseplate Mounted Working Temperature : 0C to 80C Pressure : Up to 10 Bar Fire Extinguisher Type : Not applicable (Jockey Pump for Fire Pump systems) Coverage Area : Wide Commercial and Industrial Spaces Fire Class : Suitable for Class A, B, and C Fires Energy Efficiency Rating : High Efficiency Motor Voltage : 415V AC, 50Hz

Send Inquiry

2280 Lpm Capacity Diesel Engine Driven Pumps Minimum Order Quantity : 10 Shape : Horizontal Split Case Control Type : Manual and Automatic Diameter : 100 mm (Discharge), 150 mm (Suction) Application : Fire Fighting, Industrial and Emergency Water Supply Max Flow Rate : 2280 Lpm Capacity : 2280 Lpm Installation Type : Trolley Mounted/Portable Coating Type : AntiCorrosive Epoxy Painted Features : Portable, High Efficiency, Corrosion Resistant, Quick Start Mechanism, Heavy Duty Chassis Connectivity Type : Hose Coupling Technology : Centrifugal Pump Operating Pressure : 0.7 MPa (7 bar) Mounting Type : Trolley/Portable Skid Mounted Working Temperature : 10C to +50C Pressure : 7 kg/cm2 Fire Extinguisher Type : Water Driven Pump Coverage Area : Wide area, depends on hose length and nozzle Fire Class : A, B, C Energy Efficiency Rating : High Voltage : 12V/24V DC (Electric Starter)

Send Inquiry

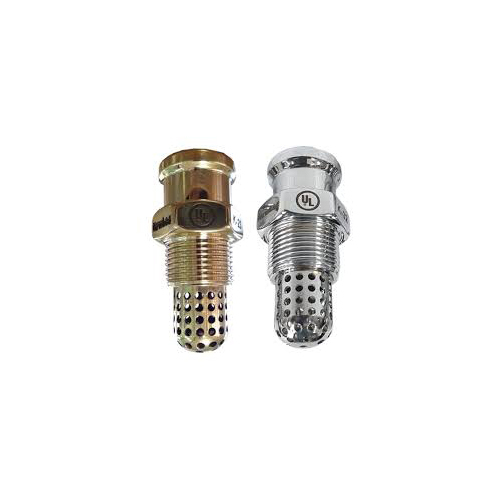

Fire Spray Nozzle Minimum Order Quantity : 10 Shape : Conical / bellshaped spray head Control Type : Manual / Automatic Diameter : 1/2 inch BSP Application : Fire suppression and safety systems in industrial, commercial, and residential areas Max Flow Rate : Up to 75 LPM Capacity : High discharge Installation Type : Ceiling or wall mounted Coating Type : Chrome plated Features : Corrosion resistant, uniform fine spray, easy to install Connectivity Type : Threaded connection Technology : Atomizing spray nozzle Operating Pressure : 37 bar Mounting Type : Ceiling / wall mount Working Temperature : Up to 80C Pressure : 37 kg/cm2 Fire Extinguisher Type : Water / foam compatible Coverage Area : Up to 4 meters radius Fire Class : A, B and C
