Main Control Center Panel Fire Hydrant System

Get a Price/Quote

Product Details:

Fire Extinguisher Type Associated with Water Based Hydrant and Sprinkler Systems
Mounting Type Wall Mounted
Coverage Area Dependent on connected hydrant network, typically up to 10,000 sq.m or site-specific
Shape Rectangular Panel
Operating Pressure Monitors System Operating Pressure up to 16 Bar
Energy Efficiency Rating A+ (Panel Electronics, dependent on installation)
Working Temperature 0C to 55C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Main Control Center Panel Fire Hydrant System Price And Quantity

Minimum Order Quantity 10 Piece

Main Control Center Panel Fire Hydrant System Product Specifications

Coverage Area Dependent on connected hydrant network, typically up to 10,000 sq.m or site-specific
Mounting Type Wall Mounted
Control Type Touchscreen/Push Button with Manual Override
Max Flow Rate Control panel does not regulate flow directly; relates to connected system capacity
Coating Type Powder Coated Rust-proof Mild Steel
Installation Type Wall-mounted Indoors (Main Control Room)
Application Fire Safety System Control for Hydrant Systems
Fire Extinguisher Type Associated with Water Based Hydrant and Sprinkler Systems
Energy Efficiency Rating A+ (Panel Electronics, dependent on installation)
Working Temperature 0C to 55C
Capacity Controls Multiple Hydrant Zones (typically up to 8-16 zones)
Voltage 230V AC, 50Hz
Shape Rectangular Panel
Operating Pressure Monitors System Operating Pressure up to 16 Bar
Connectivity Type Wired with Support for Wireless GSM/GPRS Connectivity for Remote Monitoring
Diameter Panel-based; not hose-specific
Pressure Panel Monitors System Pressure up to 15 Bar (as applicable)
Fire Class Suitable for Class A, B, and C Fires (Water-based hydrant system)
Technology Electro-mechanical Relay with Integrated Alarm, Sensor and System Monitoring
Features Centralized Control, Status Indication, Alarm Integration, Manual/Auto Switch, Fault Indication, Battery Backup, Emergency Stop

Alarm Output Audible and Visual Alarm Indications
Humidity Tolerance Up to 95% (non-condensing)
Enclosure Protection IP54 Rated
System Compliance IS 2189, NFPA 72
Input Signals Pressure Switches, Flow Switches, Valve Position Feedback, Fault Feedback
Zone Capacity 8 to 16 Zones (Customizable)
Manufacturer Warranty 12-24 months limited warranty
Weight Approx. 65 kg (panel only)
Material High-Grade Powder-Coated Sheet Metal
Circuit Protection Fuse and Overload Protection on Inputs/Outputs
Backup Power 12V/24V DC Battery Backup (up to 4 hours)
Communication Port RS-485/Modbus
Colour Red (Standard), Custom colours on request
Display Type Digital LED/LCD Display
Panel Dimensions 1200 mm x 800 mm x 300 mm (HxWxD) approx.

Main Control Center Panel Fire Hydrant System Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'Fire Fighting Equipments' category

180 Lpm Capacity Electrical Driven Jockey Pump Minimum Order Quantity : 10 Working Temperature : 0C to 80C Mounting Type : Baseplate Mounted Control Type : Automatic & Manual Control Coating Type : Powder Coated for Enhanced Durability Installation Type : Floor Mounted Application : Fire Fighting Systems, Sprinkler Systems, Booster Pumping Technology : Centrifugal Pump Technology Features : Corrosion Resistant, High Reliability, Continuous Operation, Low Maintenance Shape : Horizontal Diameter : 50 mm (approx) Capacity : 180 Lpm Pressure : Up to 10 Bar Operating Pressure : Up to 10 Bar Fire Extinguisher Type : Not applicable (Jockey Pump for Fire Pump systems) Coverage Area : Wide Commercial and Industrial Spaces Fire Class : Suitable for Class A, B, and C Fires Connectivity Type : Three Phase Electric Connection Max Flow Rate : 180 Lpm (Litres per minute)

Send Inquiry

K-Class Type Fire Extinguishers Minimum Order Quantity : 10 Working Temperature : 30C to +60C Mounting Type : Wall Mounted Control Type : Manual Squeeze Grip Coating Type : Epoxy Powder Coating Installation Type : Wall Mounted Application : Commercial Kitchen, Restaurants, Hotel Kitchens, Canteens, Food Processing Units Technology : Stored Pressure, Wet Chemical Agent Features : Easy Operation, NonCorrosive, Fast Response, Safe for Use in Kitchen Areas Shape : Cylindrical Diameter : 162 mm Capacity : 6 Litres Pressure : 15 bar Operating Pressure : 15 bar Fire Extinguisher Type : KClass, Wet Chemical Fire Extinguisher Coverage Area : 2.5 m2 (approx., depends on fire size) Fire Class : Class K (suitable for cooking oil and fat fires) Connectivity Type : Standalone (Not Connected) Max Flow Rate : 2.5 m/s

Send Inquiry

Fire Bucket Minimum Order Quantity : 10 Working Temperature : 10C to 50C (approx.) Mounting Type : Hook, bracket, or stand mountable Control Type : Manual Coating Type : Red powdercoated finish Installation Type : Wall hanging (with bracket) or standmounted Application : Fire safety, Emergency fire fighting Technology : Manual operation, No mechanical parts Features : Highly visible red color, Durable metal construction, Rust resistant, Fast response, Portable Shape : Round/oval (bucket) Diameter : Top: approx. 300 mm, Bottom: approx. 210 mm Capacity : 910 Liters Pressure : Atmospheric Operating Pressure : N/A (open container) Fire Extinguisher Type : Used with sand or water Coverage Area : Localized flame control Fire Class : Class A (Solids: wood, paper, cloth etc.)

Send Inquiry

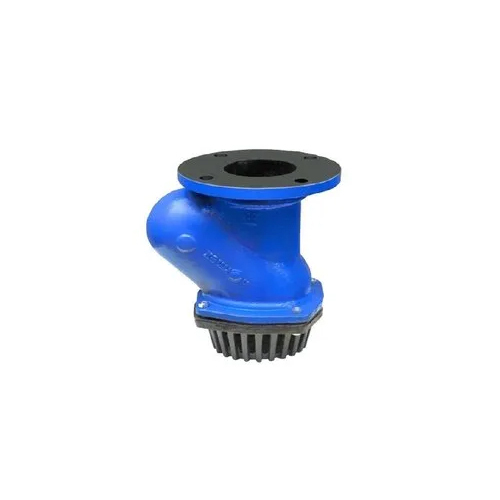

Ball Type Foot Valve Minimum Order Quantity : 10 Working Temperature : Up to 80C Mounting Type : Inline / Pipe mounted Control Type : Manual Coating Type : Epoxy Coated / Powder Coated (based on application) Installation Type : Vertical installation at pump suction Application : Water, slurry, and other liquid pipelines for suction side to prevent backflow Technology : Balltype nonreturn mechanism Features : Corrosion resistant, Maintenance free, High strength, Leakproof design Shape : Cylindrical with attached strainer Diameter : 40 mm to 200 mm (varies as per model and application) Capacity : Depends on size; typically up to 500 m3/hr Pressure : Up to 10 bar (varies with model) Operating Pressure : Maximum 10 kg/cm2 Connectivity Type : Flanged or Screwed Ends (as per requirement) Max Flow Rate : Up to 500 m3/hr (depends on size and system)
