1620 Lpm Capacity Electrical Driven Main Pump

Get a Price/Quote

Product Details:

Fire Extinguisher Type Main Pump for Wet Hydrant System
Shape Horizontal Cylindrical
Fire Class Class A & B
Features Corrosion Resistant, Continuous Duty, Easy Maintenance
Technology Centrifugal Pump
Mounting Type Base Plate Mounted
Operating Pressure 7-10 Bar
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

1620 Lpm Capacity Electrical Driven Main Pump Price And Quantity

Minimum Order Quantity 10 Piece

1620 Lpm Capacity Electrical Driven Main Pump Product Specifications

Coverage Area Large Industrial/Commercial Buildings
Control Type Electric Automatic Control Panel
Fire Extinguisher Type Main Pump for Wet Hydrant System
Installation Type Horizontal/Skid Mounted
Shape Horizontal Cylindrical
Fire Class Class A & B
Voltage 415V, 3 Phase, 50Hz
Mounting Type Base Plate Mounted
Operating Pressure 7-10 Bar
Max Flow Rate 1620 Lpm (Liters per minute)
Pressure 7-10 Bar
Application Fire Fighting, Industrial Water Supply
Technology Centrifugal Pump
Diameter 100 mm
Energy Efficiency Rating High Efficiency
Features Corrosion Resistant, Continuous Duty, Easy Maintenance
Coating Type Anti-corrosion Painted
Capacity 1620 Lpm
Working Temperature 0C to 50C
Connectivity Type Wired Electric

Noise Level Low Noise Operation (<70 dB)
Pump Speed 2900 RPM
Seal Type Mechanical Seal
Inlet/Outlet Size 100 mm / 80 mm
Motor Power 25 HP Electric Motor
Material Cast Iron/SS Impeller
Net Weight Approx. 250 kg
Suction Type End Suction Pump
Protection IP55 Motor Protection

1620 Lpm Capacity Electrical Driven Main Pump Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Piece Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'Fire Fighting Equipments' category

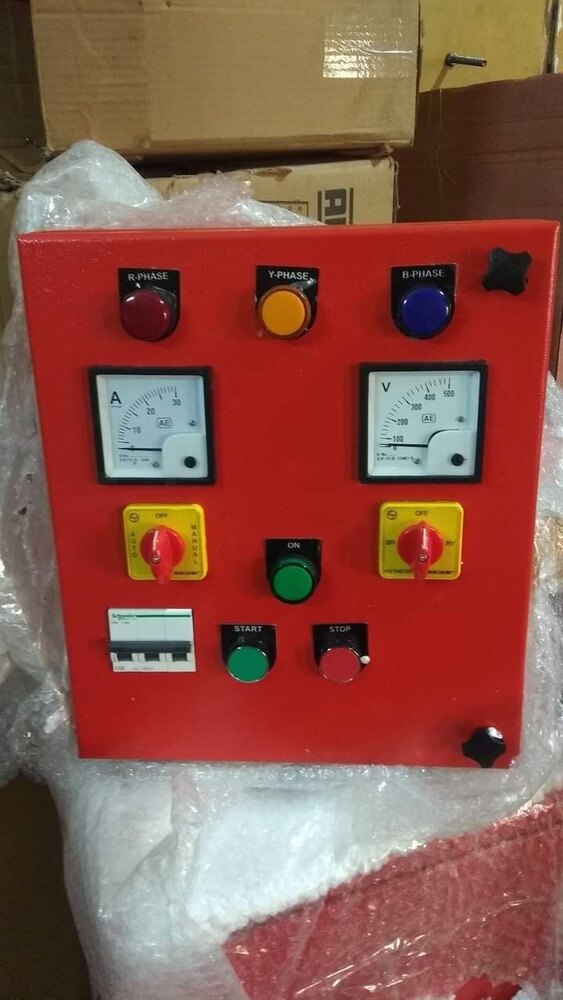

Auto Start Control Panel Fire Hydrant Panel Minimum Order Quantity : 10 Max Flow Rate : Up to 1500 LPM (Varies with Model and Pump) Pressure : Up to 12 Bar (System Dependent) Mounting Type : Wall Mounted Operating Pressure : Up to 12 Bar Fire Class : Class A, B, C Fires Shape : Rectangular Panel Cabinet Installation Type : Wall Mounted Coverage Area : Designed for Large Building Fire Hydrant Networks Control Type : Auto/Manual with Selector Switch Fire Extinguisher Type : HydrantBased Water Extinguishing Working Temperature : 10C to +60C Coating Type : Powder Coated for Corrosion Resistance Connectivity Type : Hardwired Control and Remote Panel Interface Features : Auto Start/Stop, Phase Failure Relay, HighQuality Components, LED Indication, Alarm System Diameter : Suitable for Standard and Custom Panel Sizes Technology : Microcontroller Based Automation Application : Fire Hydrant System Automation, Fire Safety Equipment Control Capacity : Configurable for Pump Ratings Up To 200 HP Voltage : 415V AC, 3 Phase, 50 Hz Energy Efficiency Rating : Optimized Power Consumption

Send Inquiry

1620 Lpm Capacity Diesel Engine Driven Pumps Minimum Order Quantity : 10 Max Flow Rate : 1620 Lpm Pressure : Up to 7 kg/cm2 Mounting Type : Skid Mounted / Trailer Mounted Operating Pressure : 7 kg/cm2 Maximum Fire Class : Class A, B & C Fires Shape : Rectangular Chassis with Cylindrical Pump Installation Type : Trailer Mounted or Skid Mounted Coverage Area : Wide area water delivery (site dependent) Control Type : Manual & Automatic Start/Stop Control Fire Extinguisher Type : Pumpbased Fire Suppression Working Temperature : 5C to +55C (approx.) Coating Type : AntiCorrosive Powder Coating Connectivity Type : Mechanical Coupling Features : Portable, Robust Construction, Quick Priming, Durable Chassis, SelfLubricating Bearings Diameter : 100 mm (4 inches) Suction, 100 mm (4 inches) Delivery Technology : Centrifugal Pump Technology Application : Fire Fighting, Industrial Water Transfer, Emergency Water Supply Capacity : 1620 Liters per Minute Voltage : 12V/24V Starter Motor for Diesel Engine Energy Efficiency Rating : High (As per Engine and Pump Configuration)

Send Inquiry

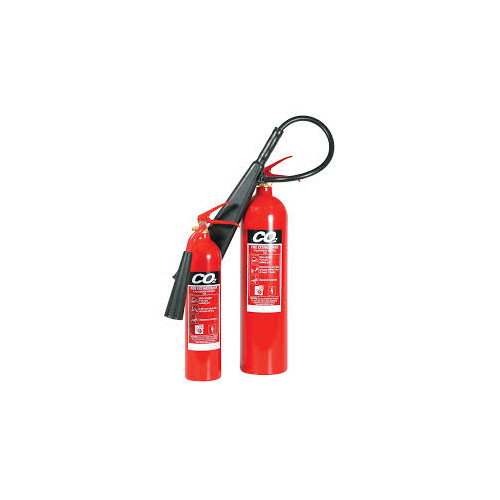

Co2 Type Fire Extinguishers Minimum Order Quantity : 10 Max Flow Rate : 2 kg/sec (Depending on Model) Pressure : 60 Bar (Cylinder Test Pressure) Mounting Type : Wall Mounted with Bracket Operating Pressure : 55 Bar (Typical at 27C) Fire Class : Class B & C Fires (Flammable liquids, Electrical Equipment) Shape : Cylindrical Installation Type : Wall Mounted or Portable Coverage Area : Varies by Rating (Typically 25 m2 for office/industrial settings) Control Type : Hand Operated Fire Extinguisher Type : CO2 Type Working Temperature : 30C to +55C Coating Type : Red Epoxy Coated Connectivity Type : Manual Discharge (No electronic connectivity) Features : NonConductive, Leaves No Residue, Suitable for Electrical Fires, Corrosion Resistant, ISI Marked Diameter : 138 mm (Approximate) Technology : Stored Pressure and Cartridge Operation Application : For Industrial, Commercial and Residential Use Capacity : 2 kg, 4.5 kg, 6.5 kg, 9 kg (Available Options)

Send Inquiry

K-Class Type Fire Extinguishers Minimum Order Quantity : 10 Max Flow Rate : 2.5 m/s Pressure : 15 bar Mounting Type : Wall Mounted Operating Pressure : 15 bar Fire Class : Class K (suitable for cooking oil and fat fires) Shape : Cylindrical Installation Type : Wall Mounted Coverage Area : 2.5 m2 (approx., depends on fire size) Control Type : Manual Squeeze Grip Fire Extinguisher Type : KClass, Wet Chemical Fire Extinguisher Working Temperature : 30C to +60C Coating Type : Epoxy Powder Coating Connectivity Type : Standalone (Not Connected) Features : Easy Operation, NonCorrosive, Fast Response, Safe for Use in Kitchen Areas Diameter : 162 mm Technology : Stored Pressure, Wet Chemical Agent Application : Commercial Kitchen, Restaurants, Hotel Kitchens, Canteens, Food Processing Units Capacity : 6 Litres

Send Inquiry
