2 Zone Fire Alarm Panel

Get a Price/Quote

Product Details:

Alarm time Continuous till reset
Alarm startup time < 3 seconds
Working Current < 150mA during alarm
Control Distance Up to 1 kilometer for field wiring
Voltage 24V DC (internal circuitry)
Sensor Type Compatible with conventional smoke and heat detectors
Sensor Cable 2-core fire rated cable
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

2 Zone Fire Alarm Panel Price And Quantity

Minimum Order Quantity 10 Unit

2 Zone Fire Alarm Panel Product Specifications

Suitable For Small to medium commercial and residential premises
Standby Current < 70mA (panel only)
Sensor Life Detector dependent, typically 5-10 years
Sensor Cable 2-core fire rated cable
Sensor Type Compatible with conventional smoke and heat detectors
Power Supply AC 220V 50Hz, with internal battery backup
Alarm Density Depend on detector type
Noise Level Alarm sounder output 85 dB at 3 meters
Wireless No, wired system
Detection Range Depends on installed detectors, typically up to 100 meters per zone
Remote Control No
Sensitivity Conventional detector dependent, fixed threshold
Control Distance Up to 1 kilometer for field wiring
Alarm Light Color Red
Working Current < 150mA during alarm
Alarm time Continuous till reset
Alarm startup time < 3 seconds
Voltage 24V DC (internal circuitry)

Weight Approx. 3.2 kg
Panel Material Powder coated metal cabinet
Mounting Type Wall-mounted
Dimensions Approx. 320mm x 230mm x 90mm
User Interface Manual control buttons for alarm test, silence, reset
Number of Zones 2 zones
Display Type LED indicators for Zone status and Fault status
Output Circuits Sounder and relay outputs for external connection
Battery Backup 12V Sealed Lead Acid (not included)
Humidity 95% RH (non-condensing)
Operating Temperature Range 0C to 50C

2 Zone Fire Alarm Panel Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'Fire Alarm System Equipments' category

4 Loop Card Fire Alarm Panel Minimum Order Quantity : 10 Alarm startup time : 3 seconds Alarm time : Continuous until reset Control Distance : Up to 1 km with repeater support Alarm Light Color : Red Working Current : 500mA Voltage : 24V DC (internal circuits) Sensor Cable : Twisted pair, 1.5 mm2 recommended Sensor Type : Smoke, heat, and multisensor compatible Standby Current : 250mA Suitable For : Other, Industrial buildings, commercial complexes, hospitals, large offices Sensor Life : Up to 5 years (typical for detector) Detection Range : Up to 100 meters (depends on detector type) Sensitivity : Configurable per EN54 standard Power Supply : 230V AC 50Hz, with battery backup Wireless : Other, No (wired loop type) Noise Level : < 75 dB during alarm at panel Remote Control : Other, Supported via dedicated panel or network Alarm Density : 0.61.5% obs/m (for smoke detection)

Send Inquiry

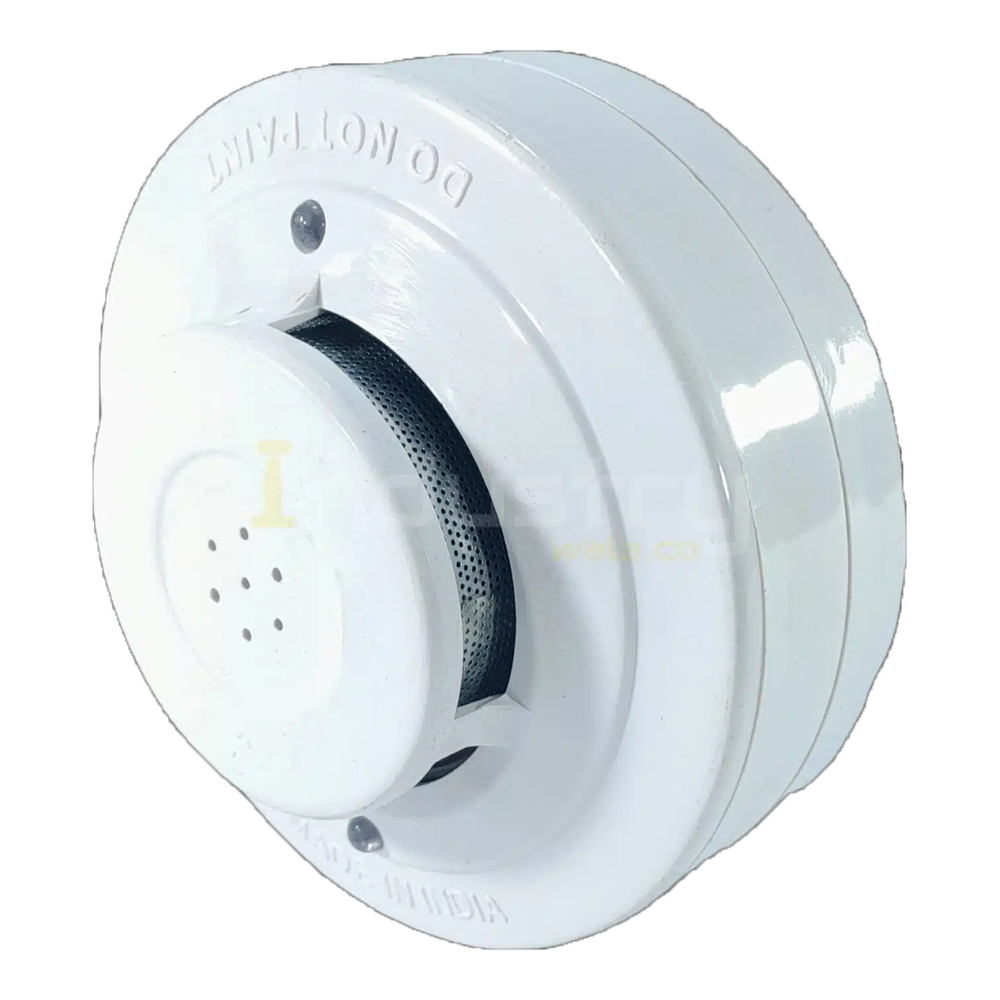

Conventional Type Smoke Detectors Minimum Order Quantity : 10 Alarm startup time : 10 Seconds Alarm time : Continuous until smoke clears or reset Control Distance : Up to 500 meters (depending on control panel) Alarm Light Color : Red Working Current : 50mA Voltage : DC 12/24V Sensor Cable : 2wire, nonpolarized Sensor Type : Photoelectric (Optical) Type Standby Current : 24A Suitable For : Other, Offices, Apartments, Warehouses, Factories Sensor Life : 10 Years Detection Range : 2040 Sq. Meter Sensitivity : 0.1 0.3 dB/m Power Supply : DC 12/24V Wireless : NO Noise Level : 85 dB (at 3 meters) Remote Control : No Alarm Density : 0.20.05 dB/m

Send Inquiry

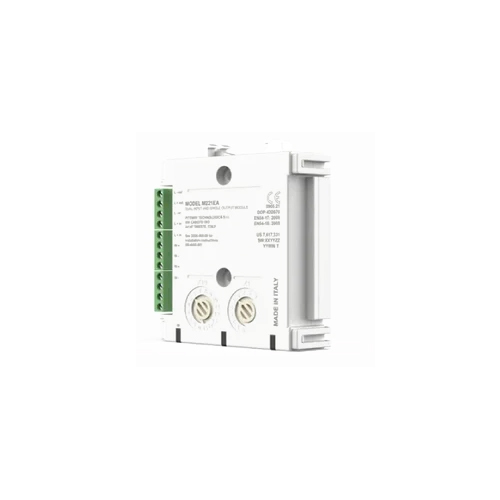

Monitor Moduler For Fire Alarm System Minimum Order Quantity : 10 Alarm startup time : < 3 seconds Alarm time : Programmable, default 20 seconds Control Distance : Max. 1500 meters from control panel Alarm Light Color : Red LED indicator Working Current : < 1.5 mA (alarm condition) Voltage : 18V28V DC Sensor Cable : Twisted Pair, 1.5 mm2 recommended Sensor Type : Input monitoring (NO/NC contact) Standby Current : 0.45 mA (loop powered) Suitable For : Other, Fire alarm system, input signal monitoring Sensor Life : 10 years typical Detection Range : Up to 1500 m2 (depends on installation) Sensitivity : Selectable, software configured Power Supply : 24V DC (loop powered) Wireless : Other, No, wired type Noise Level : N/A (device is silent, no sound output) Remote Control : Other, Supported, with compatible panel Alarm Density : Monitors single or dual input point

Send Inquiry

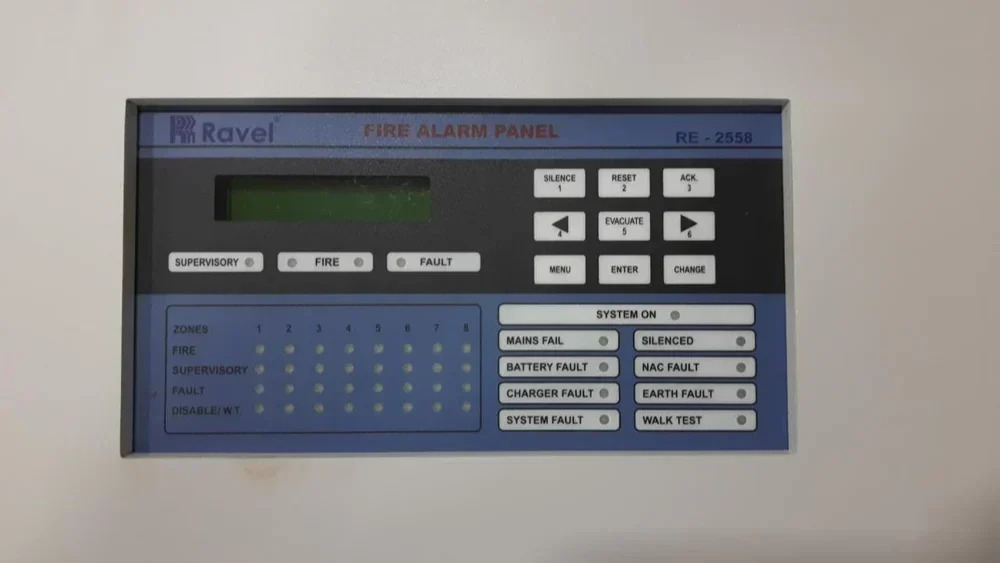

8 Zone Fire Alarm Panel Minimum Order Quantity : 10 Alarm startup time : 10 seconds Alarm time : Continuous until reset Control Distance : Over 800 meters with standard cable Alarm Light Color : Red Working Current : <300mA Voltage : DC 24V internal circuitry Sensor Cable : 2core or 4core firerated cable Sensor Type : Compatible with Smoke, Heat, and Manual Call Point Detectors Standby Current : <100mA Suitable For : Other, Commercial buildings, Offices, Hospitals, Factories Sensor Life : Average 510 years depending on usage Detection Range : Up to 100 meters (depending on sensor type and layout) Sensitivity : Conforms to EN542 standard sensitivity levels Power Supply : 220V AC 10%, 50/60Hz Wireless : Other, No, wired system Noise Level : Alarm output 85 dB at 3 meters Remote Control : Other, Supported, via optional remote panel or network Alarm Density : Adjustable by configuration

Send Inquiry
