Single Loop Card Fire Alarm Panel

Get a Price/Quote

Product Details:

Control Distance Up to 2 km (with proper wiring)
Sensor Cable 2-core, 1.5mm2 recommended
Sensor Life Typically 5 years (Sensor dependent)
Suitable For Commercial, Industrial, and Residential Buildings
Working Current 2A
Noise Level 80 dB (internal buzzer)
Alarm time Continuous until reset
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Single Loop Card Fire Alarm Panel Price And Quantity

Minimum Order Quantity 10 Unit

Single Loop Card Fire Alarm Panel Product Specifications

Control Distance Up to 2 km (with proper wiring)
Sensor Cable 2-core, 1.5mm2 recommended
Sensor Life Typically 5 years (Sensor dependent)
Detection Range Up to 100 meters
Suitable For Commercial, Industrial, and Residential Buildings
Wireless No (Wired loop)
Working Current 2A
Noise Level 80 dB (internal buzzer)
Alarm time Continuous until reset
Voltage 24V DC
Sensitivity Adjustable via panel settings
Standby Current 500mA
Alarm startup time 3 seconds
Alarm Density 0.1-0.5 dB/m (Smoke Detector)
Power Supply 220V AC / 24V DC
Remote Control Supported
Alarm Light Color Red
Sensor Type Smoke, Heat, and Manual Call Point Compatible

Communication Protocol RS485
Operating Temperature -10C to 50C
Enclosure Material Powder Coated Metal
Panel Weight Approx. 6 kg
Zones Supported 1 Loop (Expandable, 30+ devices)
Panel Dimensions 390mm x 320mm x 110mm
Battery Backup 12V, 7Ah (not included)
Installation Method Wall-mounted
Loop Capacity Up to 127 devices per loop
Humidity Range 95% RH, Non-condensing
Display Type LCD Digital Display

Single Loop Card Fire Alarm Panel Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'Fire Alarm System Equipments' category

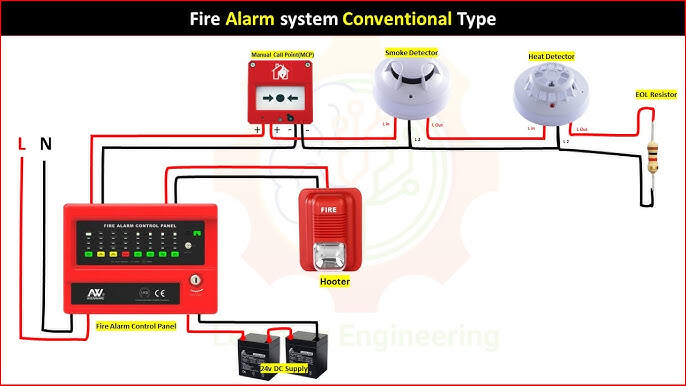

Conventional Type Fire Alarm System Minimum Order Quantity : 10 Voltage : 24V DC Standby Current : 0.1 mA (per detector) Alarm startup time : < 3 seconds Power Supply : 220V AC / 24V DC (standby battery supported) Alarm Light Color : Red Sensor Type : Smoke and Heat Sensor (Conventional) Control Distance : Up to 1 km (depends on cable and installation) Sensor Cable : 2wire/4wire (shielded, up to 1.5 mm2) Detection Range : 25 m2 50 m2 (typical for conventional smoke/heat detectors) Suitable For : Other, Offices, warehouses, commercial buildings, apartments Wireless : NO Working Current : < 20 mA (per detector) Alarm time : Continues until reset Sensitivity : Adjustable, typical 0.2 0.5 dB/m Remote Control : No Sensor Life : 5 10 years Noise Level : 85 dB at 3m Alarm Density : 0.65 dB/m (smoke) / 57C (heat detector)

Send Inquiry

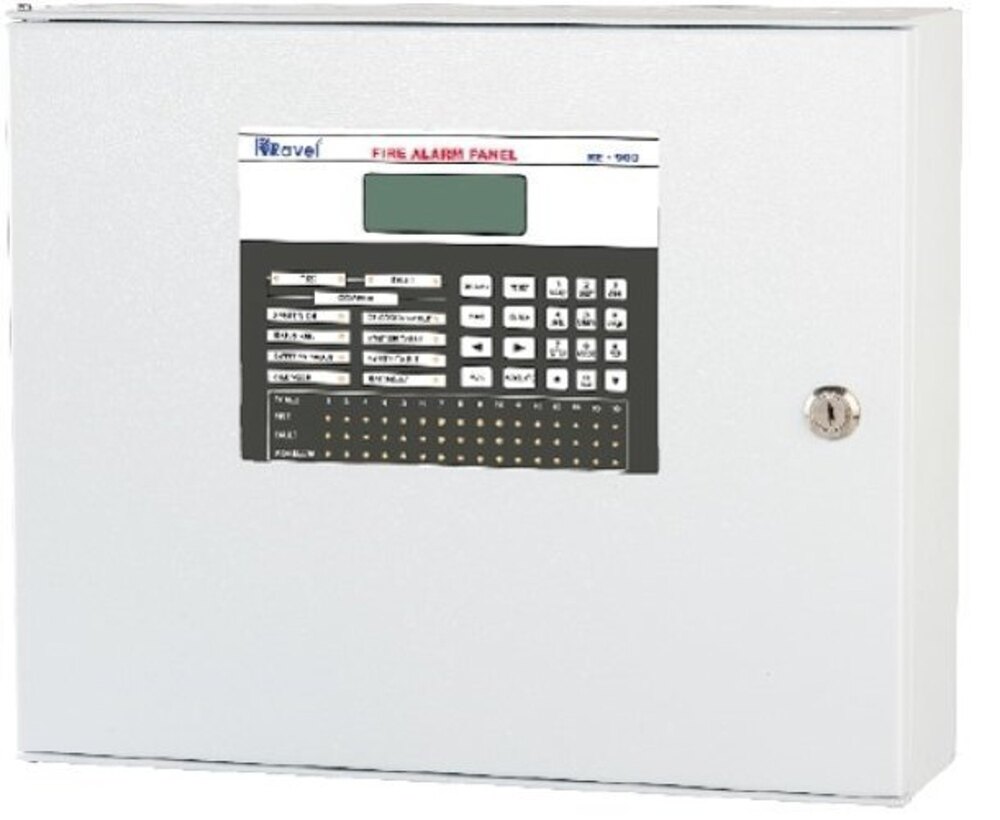

32 Zone Fire Alarm Panel Minimum Order Quantity : 10 Voltage : 24V DC internal, 230V AC input Standby Current : 150 mA (approximate) Alarm startup time : Within 3 seconds Power Supply : AC 230V 10%, 50Hz; Battery Backup 24V DC Alarm Light Color : Red Sensor Type : Compatible with smoke, heat, and manual call point sensors Control Distance : Up to 1 km (with suitable cabling) Sensor Cable : 2core, 1.5 sq mm (recommended) Detection Range : Up to 100 meters (depends on detector type) Suitable For : Other, Large buildings, offices, factories, commercial complexes Wireless : Other, No (wired system) Working Current : 400 mA (alarm condition, approximate) Alarm time : Continuous until reset Sensitivity : Adjustable (per zone) Remote Control : Other, Supported via key switch or remote module Sensor Life : Typically 510 years (sensor dependent) Noise Level : 85 dB or more (internal buzzer) Alarm Density : Programmable per zone

Send Inquiry

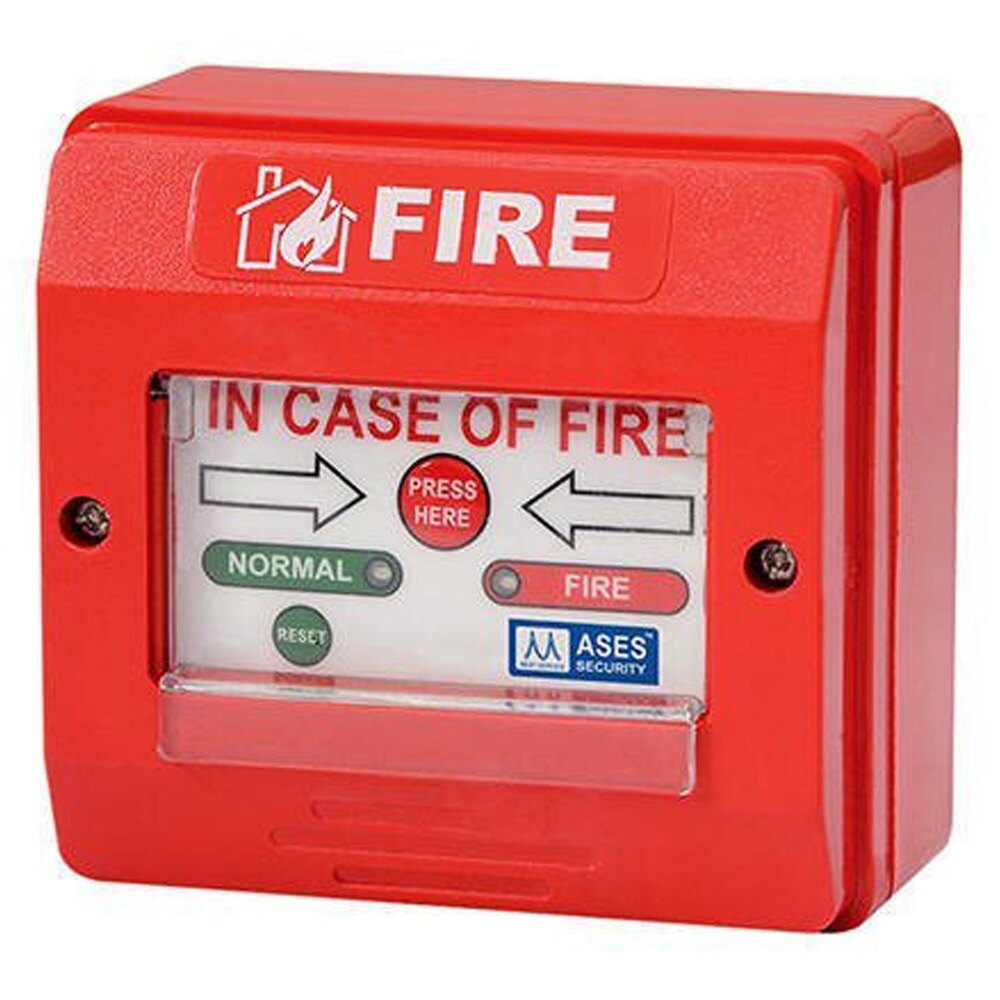

Conventional Type Manual Call Point Minimum Order Quantity : 10 Voltage : DC 24V (Standard) Standby Current : < 2mA Alarm startup time : < 1 second Power Supply : External, via Fire Alarm Control Panel Alarm Light Color : Red Sensor Type : Manual Activation Switch Control Distance : Up to 500 meters (depends on panel) Sensor Cable : Compatible with 2wire or 4wire system Detection Range : Up to 50 meters Suitable For : Other, Commercial buildings, Offices, Industrial, Residential Wireless : NO Working Current : 1530mA (During alarm) Alarm time : Continuous when pressed Sensitivity : High (Immediate Response) Remote Control : No Sensor Life : 10 Years Noise Level : Silent device (no sound output)
