Addressable Type Fire Alarm Panel

Get a Price/Quote

Product Details:

Sensitivity Complies with EN54/IS standards (adjustable via panel)
Sensor Type Addressable Photoelectric Smoke / Heat sensor compatible
Noise Level <80 dB(A) at 1m (Internal Buzzer only)
Voltage 24V DC (internal power bus)
Alarm startup time <3 Seconds
Control Distance Up to 2 Km with looped cable system
Alarm time Continuous until reset/manual intervention
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Addressable Type Fire Alarm Panel Price And Quantity

Minimum Order Quantity 10 Unit

Addressable Type Fire Alarm Panel Product Specifications

Remote Control Supported via external module or network
Sensor Cable Twisted pair, shielded (RS485/2-core)
Alarm Density 0.15 - 0.20 dB/m (smoke detection)
Alarm Light Color Red
Sensor Life Typically 5-10 years
Suitable For Offices, Factories, Warehouses, Commercial Buildings
Standby Current <250 mA
Power Supply AC 220V, 50Hz
Detection Range 100 meters (typical for coverage area, may vary per device)
Voltage 24V DC (internal power bus)
Alarm startup time <3 Seconds
Control Distance Up to 2 Km with looped cable system
Wireless No (wired addressable system)
Working Current <500 mA
Alarm time Continuous until reset/manual intervention
Sensitivity Complies with EN54/IS standards (adjustable via panel)
Sensor Type Addressable Photoelectric Smoke / Heat sensor compatible
Noise Level <80 dB(A) at 1m (Internal Buzzer only)

Enclosure Material Powder coated metal
Dimensions 400mm x 320mm x 120mm
Battery Backup 12V, 7Ah sealed lead acid (auto charging)
Expansion Capability Supports networked configuration for multiple panels
Event Logging Up to 999 events with non-volatile memory
Mounting Type Wall Mounted
Weight Approx. 7 kg
Communication Protocol RS485, CAN, or proprietary addressable protocol
System Indications Fire, Fault, Supervisory, Power, and Silence status LEDs
Operating Temperature 0C to +50C
Display Type LCD Graphic/LED Indicator Panel
Programming Panel programmable via onboard keypad
Number of Zones Two loops (expandable up to 4 loops), up to 250 detectors per loop
Ingress Protection IP30

Addressable Type Fire Alarm Panel Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Other Products in 'Fire Alarm System Equipments' category

Addressable Type Fire Alarm System Minimum Order Quantity : 10 Voltage : 24V DC (typical device operation) Wireless : Other, No, wired system Sensor Cable : Twowire, twisted pair, shielded (per EN 5417) Suitable For : Other, Commercial buildings, malls, hospitals, hotels, industrial facilities Alarm startup time : 3 seconds Detection Range : Up to 1000 m2 per loop (typical) Power Supply : AC 220V/50Hz or DC 24V Alarm time : Continuous until reset Working Current : 0.5A (system dependent) Noise Level : 85dB at 1 meter (alarm base) Remote Control : Other, Supported via system panel or management software Alarm Light Color : Red Standby Current : 0.1A (system dependent) Control Distance : Max 1500 meters per loop Sensor Type : Photoelectric Smoke Sensor, Heat Sensor (optional modules available) Sensitivity : Adjustable (per EN54 or manufacturer standard) Sensor Life : 10 years (smoke detector), 5 years (heat detector) Wireless Distance : N/A (wired system) Alarm Density : 0.10.3 dB/m (smoke), 57C67C (heat)

Send Inquiry

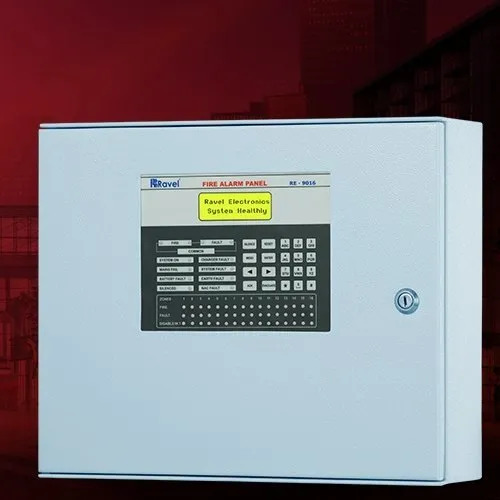

16 Zone Fire Alarm Panel Minimum Order Quantity : 10 Voltage : 24V DC (internal circuits) Wireless : Other, No, wired panel Sensor Cable : 2core, 1.5mm2 shielded fire cable recommended Suitable For : Other, Multizone commercial and industrial premises Alarm startup time : Within 3 seconds Detection Range : Up to 100 meters (open area) Power Supply : AC 220V 10%, 50Hz Alarm time : Continuous until manually reset Working Current : Less than 500mA Noise Level : Less than 85 dB (panel operation) Remote Control : Other, Supported via wired control panel interface Alarm Light Color : Red Standby Current : Less than 200mA Control Distance : Up to 1 kilometer (using dedicated fire cable) Sensor Type : Compatible with smoke, heat, and flame detectors Sensitivity : Adjustable per channel, compliant with EN54 Sensor Life : 510 years (depending on type and environment) Wireless Distance : Not applicable (wired system) Alarm Density : 0.65~2.5%/ft (for smoke detectors)

Send Inquiry

Conventional Type Manual Call Point Minimum Order Quantity : 10 Voltage : DC 24V (Standard) Wireless : NO Sensor Cable : Compatible with 2wire or 4wire system Suitable For : Other, Commercial buildings, Offices, Industrial, Residential Alarm startup time : < 1 second Detection Range : Up to 50 meters Power Supply : External, via Fire Alarm Control Panel Alarm time : Continuous when pressed Working Current : 1530mA (During alarm) Noise Level : Silent device (no sound output) Remote Control : No Alarm Light Color : Red Standby Current : < 2mA Control Distance : Up to 500 meters (depends on panel) Sensor Type : Manual Activation Switch Sensitivity : High (Immediate Response) Sensor Life : 10 Years

Send Inquiry

Hooter Sounder Cum Strobe Minimum Order Quantity : 10 Voltage : 220V Wireless : NO Sensor Cable : 2 core shielded Suitable For : Other, Industrial, Commercial, Residential use Alarm startup time : < 5 seconds Detection Range : Up to 30 meters Power Supply : 220V AC Alarm time : Selectable, continuous until reset Working Current : < 100 mA Noise Level : 95110 dB Remote Control : No Alarm Light Color : Red Standby Current : < 20 mA Control Distance : Wired operation only Sensor Type : N/A (Hooter Sounder device)

Send Inquiry
